| WITH A DOUBLE-WISHBONE
SUSPENSION, YOU DON'T NEED LUCK IN THE CORNERS.

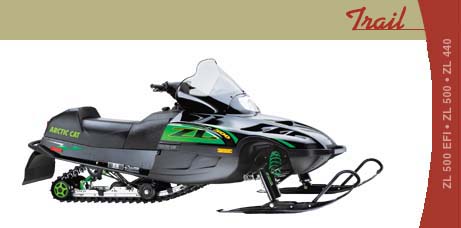

You'll be hard-pressed to find a sled that handles more precisely and rides more comfortably than these three ZLs. All boast our exclusive AWSTM V double-wishbone front suspension and our FasTrack® Long-Travel Rear Suspension System. This provides a plush 13.5 in. of rear suspension travel while keeping your center of gravity low for aggressive cornering. Choose a ZL 500 with carbs or our batteryless EFI. Or a carbureted ZL 440.
|
|
| ZL 500 EFI / ZL 500 / ZL 440 | |
| Displacement (cc), Cooling, Cylinders: | 497, liquid, twin (500's) / 436, liquid, twin (440) |
| Est. Horsepower | 96 (500's) / 68 (440) |
| Lubrication | oil injection |
| Ignition | CDI |
| Carburetion | throttle body batteryless EFI (500 EFI) / 2 x VM 38 (500) / 2 x VM 36 (440) |
| Exhaust | tuned pipe |
| Drive | Arctic (rpm sensing) |
| Driven Clutch | Arctic (roller cam) |
| Ski Stance (inches) | 43 |
| Ski Material | plastic |
| Front Suspension | AWS V double-wishbone A-arms with Ryde FX shocks and adjustable rate springs |
| Front Travel (inches) | 10 |
| Rear Suspension | FasTrack Long-Travel System slide-rail, adjustable torsion springs, Ryde FX shocks, Torque Sensing Link rear arm |
| Rear Travel (inches) | 13.5 |
| Track Width x Length x Lug (inches) | 15 x 121 x .85 (500's) / 15 x 121 x .75 (440) |
| Brakes | Hydraulic disc |
| Fuel Capacity (gallons) | 13 (500's) / 10.5 (440) |
| Length x Width (inches) | 112 x 48 |
| Est. Dry Weight (pounds) | 481 (500 EFI) / 475 (500) / 461 (440) |
| Headlight | halogen (3-bulb) |
| Standard Equipment | tachometer, speedometer, trip odometer, low oil light, coolant overheat light, spark plug holder, belt holder |
| Optional Equipment | reverse, mirrors, mountain strap, high windshield, tether switch, 2-passenger seat with backrest, rack, hitch, accessory outlet, Mountain Cat kit |
